TDK
TDK B65803N0100A048
TDK B65803N0100A048
Regular price
$3.30 USD
Regular price
Sale price
$3.30 USD
Unit price
/
per
Couldn't load pickup availability
Description

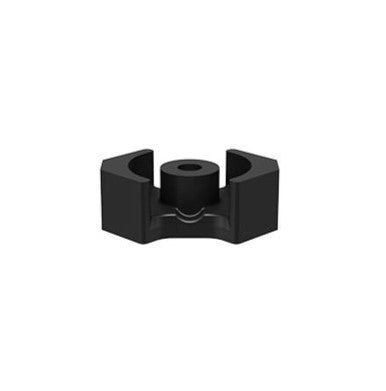

Ferrite Core RM 100NH N48 - Pair (2 Pieces in One Unit).
Uncoated N48 Ferrite Core RM Type 0.433" (11.00mm) Length 0.181" (4.60mm) Width Diameter 0.207" (5.25mm) Height
|
TYPE
|
DESCRIPTION
|
|
|---|---|---|
|
Mfr
|
EPCOS - TDK Electronics
|
|
|
Series
|
||
|
Package
|
||
|
Product Status
|
Active
|
|
|
Core Type
|
RM
|
|
|
Supplier Device Package
|
RM 4
|
|
|
Material
|
N48
|
|
|
Diameter
|
-
|
|
|
Inductance Factor (Al)
|
100 nH
|
|
|
Tolerance
|
±3%
|
|
|
Gap
|
Gapped
|
|
|
Effective Permeability (µe)
|
152
|
|
|
Core Factor (ΣI/A) mm⁻¹
|
1.9
|
|
|
Effective Length (le) mm
|
21
|
|
|
Effective Area (Ae) mm²
|
11
|
|
|
Effective Magnetic Volume (Ve) mm³
|
231
|
|
|
Finish
|
Uncoated
|
|
|
Height
|
0.207" (5.25mm)
|
|
|
Length
|
0.433" (11.00mm)
|
|
|
Width
|
0.181" (4.60mm)
|
